Zinc Plated Steel Phillips Flat Head Tapping Screws Countersunk Wood Screws

Suzhou Runtai Precision Hardware Co,.Ltd.
Contact Now

Zinc Plated Steel Phillips Flat Head Tapping Screws Countersunk Wood Screws

  • 1
  • 2
  • 3

Brand Name : Runtai

Model Number : RT-001

Certification : ISO9001/TS16949

Place of Origin : China

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000ton/month

Delivery Time : 15-20 working

Packaging Details : Poly bag+Cartoon Box+ Wooden Pallet

Products Name : Zinc Plated Steel Phillips Flat Head Tapping Screws

Part Number : RT- Bushing 002

Standard : DIN,ANSI,JIS,ASTM,GB

Material For Choose : Carbon Steel, Stainless Steel,Brass, Aluminum Alloy

Surface Treatment : Plain, Zinc, Zinc Nickel Plated

Packaging : Poly Bag+Cartoon Box+ Wooden Pallet

Contact Now

Zinc Plated Steel Phillips Flat Head Tapping Screws Countersunk Wood Screws

Products Description

These steel screws are available with corrosion-resistant finishes. They're beveled under the head for use in countersunk holes. Screws penetrate 0.025" and thinner sheet metal. Length is measured from the top of the head.

Zinc-plated steel screws resist corrosion in wet environments.

Products Specification

Drive Size No. 0
Drive Style Phillips
Drill Bit Size No. 55
Drill Bit Size Decimal Equivalent 0.052"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 52
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Flat
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS Not Compliant

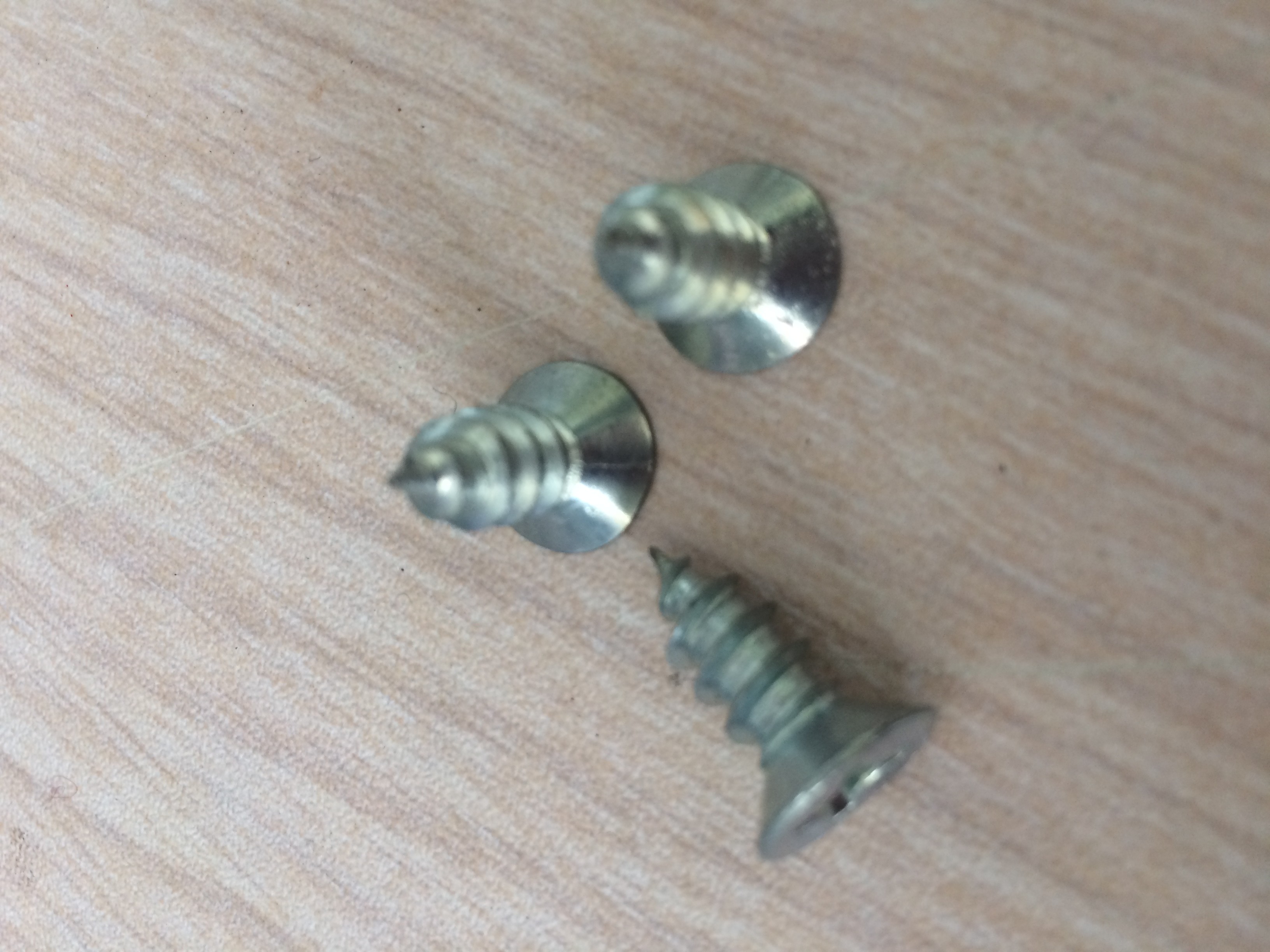

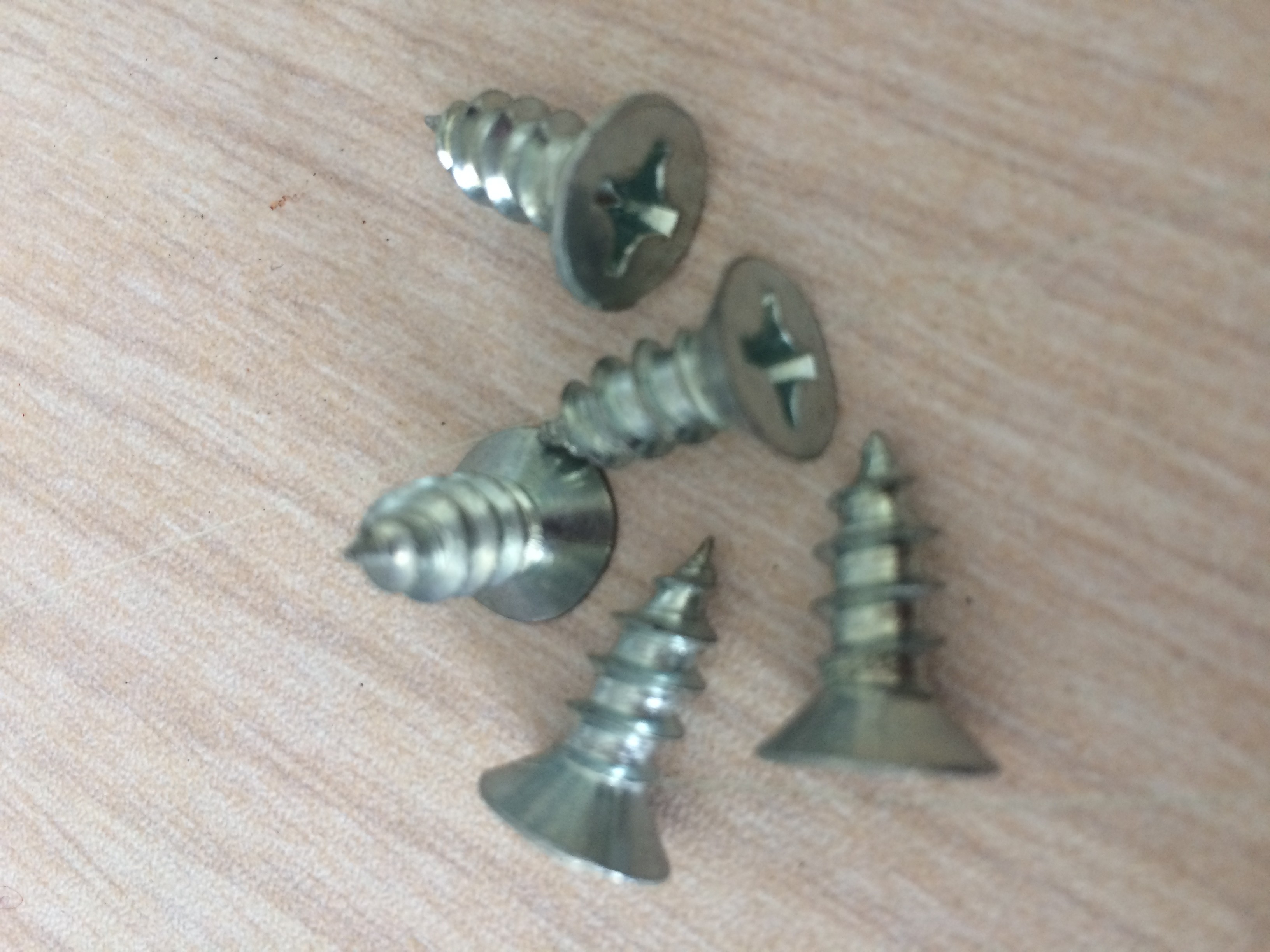

More Pictures

Zinc Plated Steel Phillips Flat Head Tapping Screws Countersunk Wood ScrewsZinc Plated Steel Phillips Flat Head Tapping Screws Countersunk Wood Screws

FAQ

Q1: Why choose Runtai?
To provide our customers with first-class services in the supply of high quality screw, bolt, bushing, nut and customized hardware.
12 Point Hex Flange Bolt
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you just need a sample we have in our stock, we will provide you sample for free and you afford the freight.
Full Thread Hex Bolts And Nut/Black Oxide Hex Head Screw
Q3: Can you strictly follow the tolerance on the drawing and meet the high precision?
Yes, we can, we can provide high precision parts and make the parts as your drawing.
stainless steel hex bolt and nut and washer
Q4: How long can I expect to get the customized sample?
After you pay the sample charge and send us confirmed files, and the mould is existing in our factory, the samples will be ready in 5-10 working days;
If the mould is not existing, we need to open a new mould, the samples will be ready in 10-15 working days; The samples will be sent to you via and arrive in 3-5 working days. You can use your own express account number or prepay us if you do not have an account.
8.8 grade heavy hex bolt and nut galvanized
Q5: What’s your Delivery Time?
Honestly, it largely depends on the order quantity and the season when you place the order. As usual, 15-30working days will be ok. If you are very urgent, we will try our best to do it.
